Rim T800 pre-preg carbon with toughened resin

Hub 7075 T6 aluminum

Spokes T800 carbon

Rim profile 40 mm

Rim inner width 24 mm

Rim outer width 28.9 mm

Number of spokes 12 per wheel – 2 groups of 6 on each side

Special nipples Internal in the rim

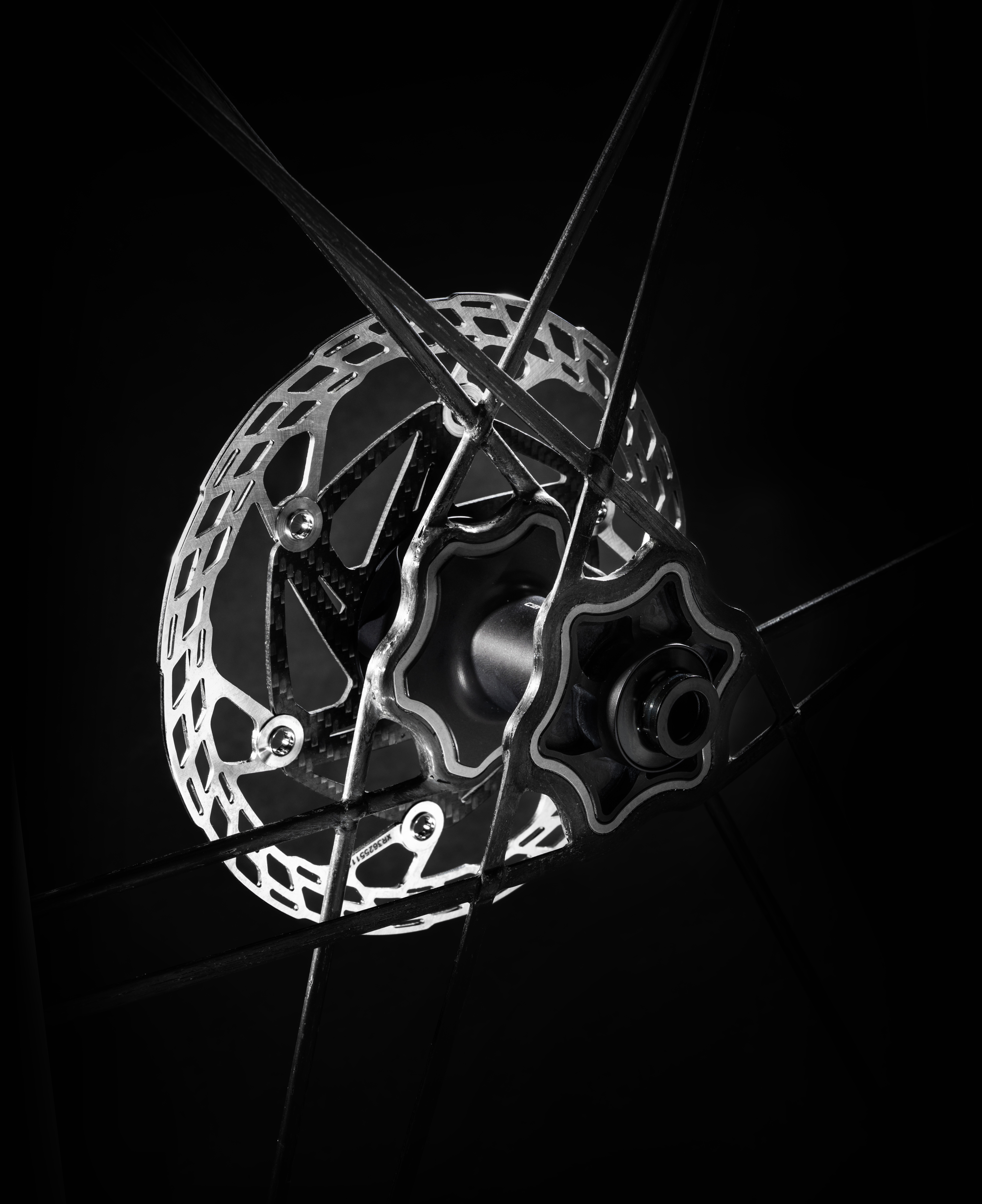

Hub HEXAGON

Wheel weight 1350 g (± 3%)

Weight limit 120 kg (rider)

Axle compatibility Front: 100 x 12 mm – Rear: 142 x 12 mm

Brake type Disc

Wheel diameter 700 mm

TLR tire size optimized for aerodynamics 28 mm

Max tire pressure (psi | bar) Max 6.5 bar for 28 mm

Ceramic bearings 40 mm

MiniHook tooth 24 mm

Internal bearing size Front: 2 x 15267
Rear: 1 x 15267 + 1 x 61902

Minimum tire size 25 mm

Maximum tire size 48 mm

Freehub available for HG 11
XDR
Campagnolo
N3W

Maintenance spokes, rims and hubs replaceable

Support intervention time of 15 working days from receipt at headquarters

Spare parts available
